Brand Name : Sunland
Model Number : -2025-0014
Certification : UN38.3 MSDS
Place of Origin : GUANGZHOU CHINA
MOQ : Negotiable
Price : Negotiable
Supply Ability : Negotiable
Delivery Time : Negotiable
Packaging Details : Carton with protective liner
No. | Items | Specifications | Remark
|
1 | Normal Capacity for assembled cell discharging by 0.2C
| 10Ah | Standard discharging method
|
2 | Maximum charge current
| 2A | 0~45℃ |
3 | Maximum discharge current
| 2A | -20~60℃
|
4 | Battery Voltage
| ≥3.6V | Delivery Voltage, Within 10 days from Factory
|
5 | Standard charge condition
| Charge with 0.2C constant current and 4.2V constant voltage, charge to 4.2V,continue charging till current decline to ≤0.01C
| Charge voltage: 4.2V±0.03V Charge current:0.2C
|
6 | Standard discharging method
| 0.2C constant current discharge to 2.5V, | |
7 | Internal Impedance
| Assemblage Impedance
| Measure the Red and black wire of the connector after assembling.
|
8 | Battery pack dimension
| T:23mm*W:45mm*L:74mm | Max dimension
|
9 | Case | PVC | |
10 | Weight
| ≈160g |
![]() |

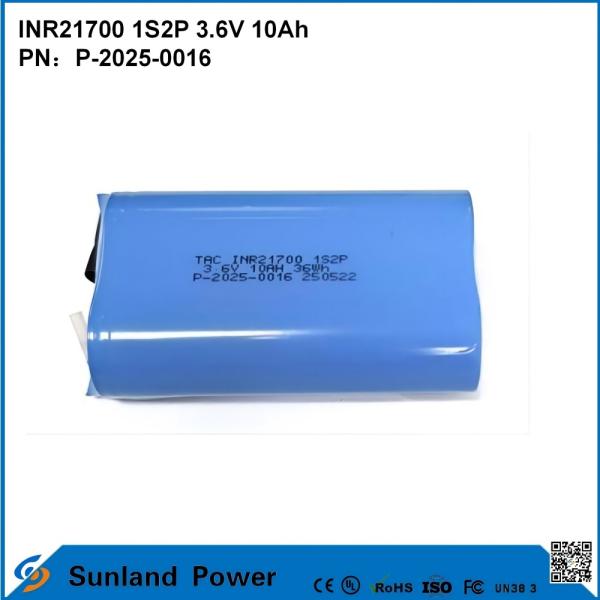

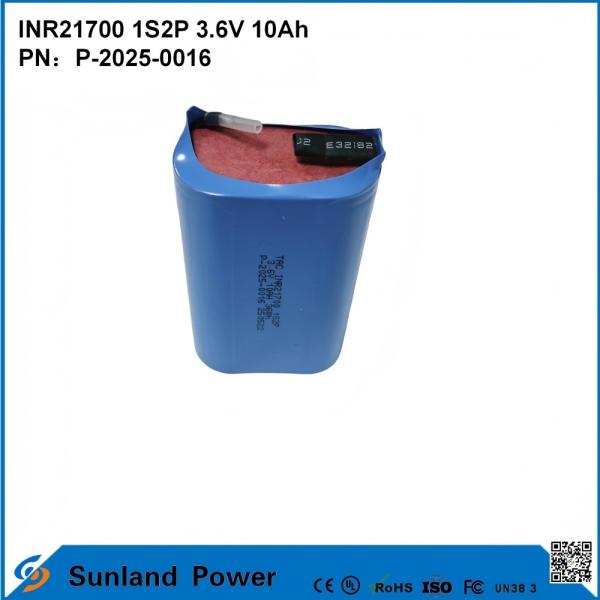

INR21700 1S2P 3.6V 10Ah BATTERY Is Suitable For Wireless Surveillance Cameras Smart Door Locks Portable Medical Monitors Industrial Sensor Gateways Images |
